Flow Deflection
Flow deflection is a stream restoration technique that uses in-stream structures to redirect flow away from eroding banks and concentrate it in the center of the channel. These practices are a key component of natural channel design and are used to both protect streambanks from erosive forces and enhance aquatic habitat. By strategically altering flow patterns, these structures can induce scour to create pools, promote deposition to build bars, and narrow an overly wide channel, all of which contribute to a more stable and ecologically functional stream system. They are an essential tool within the broader practice of streambank protection.
Common flow deflection structures include wing deflectors, rock vanes, log vanes, and cut-off sills. Each is designed with a specific geometry and orientation to achieve a desired hydraulic and geomorphic outcome. For example, vanes are angled upstream to guide the thalweg (the deepest part of the channel) away from the bank toe, while opposing wing deflectors constrict the flow to deepen the baseflow channel. The selection and design of a particular structure depend on site-specific conditions such as channel geometry, flow velocities, and restoration goals.
Types of Flow Deflection Structures
Several types of structures are used to deflect and concentrate stream flow, each with a specific form and function. They are typically constructed from natural materials like rock and logs to blend into the stream environment.
Wing Deflectors

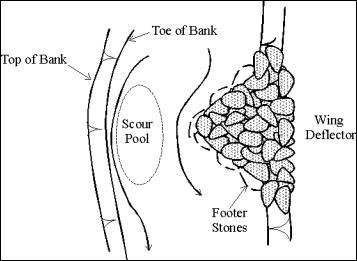

A wing deflector is a triangular structure built with the wide base keyed into the streambank and the apex pointing into the channel. They are typically constructed of rock or a rock-filled log frame.
- Single Wing Deflectors are used to guide flow away from one bank. This action can help create sinuosity in a straightened channel or promote the formation of an undercut bank on the opposite side, which provides excellent overhead cover for fish. However, they must be used with caution, as they direct energy toward the opposite bank, which must be stable or armored to prevent new erosion.

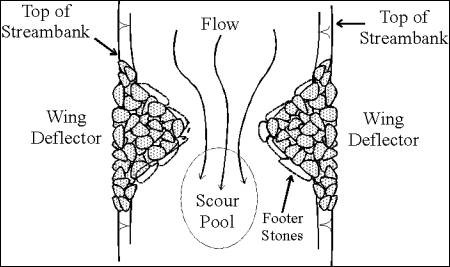

- Double Wing Deflectors consist of two structures placed opposite each other. This configuration narrows the channel, forcing flow toward the center. The increased velocity between the deflectors scours the bed, deepening the baseflow channel and creating pool habitat immediately downstream while enhancing riffle habitat between and upstream of the structures. This design is often preferred in urban settings as it avoids concentrating flow against a single bank.
For both types, the structure typically slopes from the bankfull elevation at the bank down to the channel invert at its tip, which generally extends about one-third of the way across the channel.
Vanes (Log, Rock, and J-Hook)
Vanes are linear structures made of rock or logs that are keyed into the streambank and extend into the channel at an upstream angle. Their primary function is to redirect erosive flows away from the bank toe and toward the center of the channel, mimicking the effect of a large tree falling into the stream. Vanes create scour pools on their downstream side, providing valuable habitat.
Key design features include:
- Angle: Vanes are angled upstream from the bank at 20 to 30 degrees.
- Length: They typically extend out from the bank for a distance equal to one-third of the bankfull channel width.
- Height: The structure slopes down from the bankfull elevation at the bank to the channel invert at its tip.
A J-hook vane is a variation of a rock vane where the channel end of the structure curves downstream in the shape of a “J”. This hook enhances the formation of a deep scour pool downstream of the structure and helps to center the low-flow channel.
Cut-Off Sills

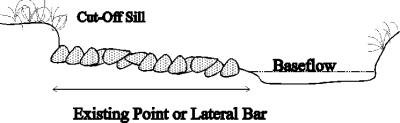

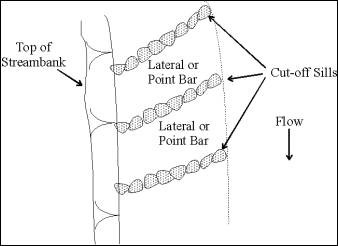

Cut-off sills are low rock weirs that extend from the bank into the channel, often at a 20- to 30-degree upstream angle. Unlike vanes or deflectors, their primary purpose is to encourage deposition along the channel margin to build point bars, narrow the baseflow channel, or stabilize existing bars. They are typically built much lower than the bankfull elevation and may only be slightly higher than the bar they are intended to stabilize. They are often used in channels with high bedload movement and shifting baseflow conditions.
Linear Deflectors
A linear deflector is a line of boulders placed parallel to the bank but within the stream channel, rather than extending from it. This technique is used in overly wide channels to narrow, deepen, and better define the baseflow path. The area between the deflector and the bank can be backfilled with excavated material or allowed to fill with sediment over time. Careful consideration must be given to the opposite bank; if it is unstable, it may require bank stabilization measures to prevent erosion and further channel widening.
Applicability
Flow deflection practices are suitable for streams experiencing bank erosion due to concentrated flow, overly wide and shallow channels with poor habitat, or channels that have been straightened and lack natural meanders. They are a common component of stream restoration projects in urban, suburban, and rural settings.
These techniques are most effective when the underlying cause of stream instability, such as excessive stormwater runoff from the watershed, is also addressed. In watersheds with high impervious cover, in-stream structures may be insufficient on their own. Upstream detention and infiltration practices may be necessary to reduce the erosive energy of storm flows. The pond design calculator can assist in sizing upstream facilities to help moderate peak flows.
Design Considerations
Proper design and placement are critical to the success and stability of flow deflection structures. Poor design can lead to flanking (flow going around the structure), undermining, or transferring the erosion problem to another location.
- Geometry: The angle, length, and height of each structure must be tailored to the site’s specific hydraulics and geomorphology. Vanes and sills are typically angled 20 to 30 degrees upstream. Structures should extend from the bank a sufficient distance (often one-third of the channel width) to influence the thalweg but not so far as to create a major obstruction.
- Elevation: Most deflectors and vanes are built to the bankfull elevation where they meet the bank and slope down toward the channel bed. This allows high flows to pass over the structure without causing excessive stress. Cut-off sills and linear deflectors are often built to a lower elevation.
- Keying In: All structures must be “keyed in” by excavating trenches into the streambank and streambed. This anchoring prevents flow from eroding around or under the structure, which is a common failure mode. Footer rocks are placed in the trench to provide a stable foundation for the rest of the structure.
- Materials: Boulders used for construction must be large enough to resist movement during flood flows. Rock should be angular and durable. Logs must be of a decay-resistant species and securely anchored.
- Integration: Flow deflectors are often used in combination with other techniques, such as grade control structures, to create a stable, step-pool morphology.
Construction and Cost Considerations
Construction of flow deflection structures requires heavy equipment to transport and place large rocks and logs. Access to the stream corridor is a primary consideration that can significantly impact project cost and feasibility. Work is typically performed during periods of low flow to minimize water quality impacts and simplify construction. In some cases, temporary dewatering of the work area using coffer dams and pumps may be necessary.
Costs are highly variable and depend on site access, project scale, material availability, and labor rates. Mobilization of heavy equipment is a significant cost component. The expense of appropriately sized stone or logs can also be substantial. It is essential to use experienced contractors who understand the principles of natural channel design and fluvial geomorphology.
Maintenance
Properly designed and constructed flow deflection structures generally require minimal maintenance. However, regular inspections are crucial, especially following large storm events.
| Frequency | Maintenance Activity |
|---|---|
| Annual (and after major storms) | Inspect structures for signs of failure, such as flanking, undermining, or displacement of rocks or logs. |
| Annual | Check for unintended erosion on the opposite bank or downstream. |
| As Needed | Remove large woody debris if it has accumulated in a way that compromises the structure’s function or directs flow into a vulnerable bank. |
| As Needed | Make repairs by repositioning stones or adding material to address any structural damage identified during inspections. |
Limitations
While effective, flow deflection practices have limitations. They do not address the root causes of stream degradation, such as excessive stormwater runoff from upstream development. Without a comprehensive watershed-level strategy, in-stream structures may be overwhelmed by frequent, high-energy flows. A holistic approach using a variety of practices identified through a BMP selector tool is often more effective.
Poor design or construction can worsen stream instability. If a structure is not properly keyed into the bank, it can be easily outflanked, accelerating bank erosion. If it is improperly angled or sized, it can transfer erosive energy to the opposite bank or downstream. These practices require a thorough understanding of stream dynamics and should only be designed by qualified professionals.
Frequently Asked Questions
What is the primary purpose of flow deflection?
The primary purpose is twofold: to protect eroding streambanks by redirecting high-velocity flows away from them, and to enhance aquatic habitat. By concentrating flow, these structures scour pools, create riffles, and narrow overly wide channels, which improves conditions for fish and other aquatic life. They are a fundamental tool in active stream restoration that addresses both stability and ecological function.
What is the difference between a rock vane and a wing deflector?
A rock vane is a linear structure angled upstream to gently guide flow away from a bank. A wing deflector is a triangular structure with its point aimed into the channel, designed to more abruptly push flow away from the bank or, when used in pairs, to constrict and center the flow. Vanes are generally used for bank protection along outside meander bends, while wing deflectors are often used to create habitat features or narrow a channel.
Can these structures cause more erosion?
Yes, if improperly designed or installed, flow deflection structures can cause unintended erosion. A single wing deflector can erode the opposite bank if it is not sufficiently stable. Any structure that is not properly keyed into the bank and bed can be outflanked or undermined, leading to localized scour and failure. This is why professional design based on site-specific hydraulic analysis is essential for success.
What kind of rock should be used for flow deflectors?
The rock should be dense, durable, and angular. Angular rock interlocks better than rounded river rock, creating a more stable structure. The size of the rock is critical and must be calculated based on the shear stress expected during high-flow events to prevent it from being washed away. The rock must be large enough to be hydrostatically stable within the stream’s specific flow regime.
Are permits required to install flow deflectors?
Yes, in-stream construction work almost always requires permits from multiple agencies. This typically includes a Clean Water Act Section 404 permit from the U.S. Army Corps of Engineers and a Section 401 Water Quality Certification from the state environmental agency. Local floodplain development or watershed district permits may also be required. The permitting process is a critical step in any stream restoration project.
How do J-hook vanes improve habitat?
The curved “hook” at the end of a J-hook vane concentrates flow and creates a vortex that scours a deep pool immediately downstream of the structure. These scour pools provide critical habitat for fish, offering refuge during low flows and protection from predators. The structure also creates a velocity gradient, with faster water near the center and slower water near the bank, increasing overall habitat diversity in the reach.
When would a double wing deflector be used instead of a single one?
A double wing deflector is used when the goal is to narrow the entire channel and concentrate flow in the center, rather than just protecting one bank. This approach is often preferred in urban streams or where both banks are equally vulnerable. By directing energy to the channel’s center, it avoids creating a new erosion problem on the opposite bank, which is a significant risk when using a single deflector.
How long do these structures last?
When designed and constructed correctly with durable materials like large, angular rock, flow deflection structures can last for many decades. The key to longevity is ensuring the foundation is stable and the materials are sized to withstand flood forces. Structures built with logs have a shorter lifespan due to natural decay, although using decay-resistant wood species can extend their functional life significantly.
What does “keying in” a structure mean?
“Keying in” refers to the construction practice of excavating a trench into the streambank and streambed and building the ends of the structure within that trench. This anchoring is critical to prevent water from flowing around or under the structure, which would cause it to fail. A well-keyed structure becomes an integral part of the bank and bed, ensuring its stability and long-term performance.
